Detritors

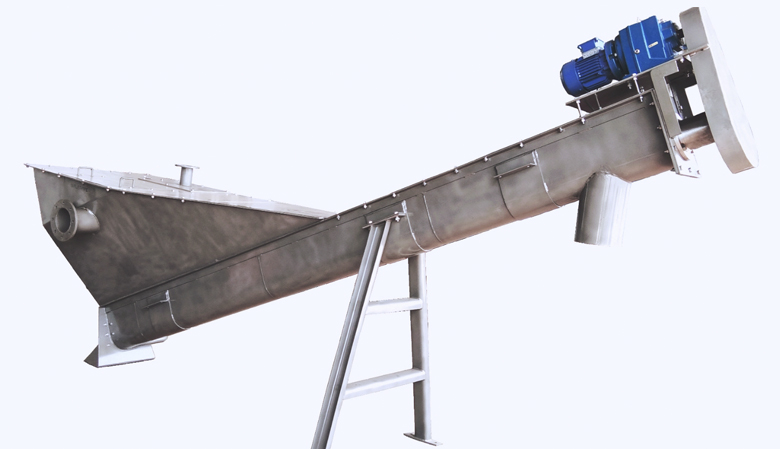

The grits collection and washing equipment by Shivpad is best suited for horizontal flow type grit chambers.

These continuous mechanically operated grits collectors consist of a rotating outward raking mechanism to aid collection of grits at one point on the periphery of the tank from where they are moved up on an incline by a reciprocating rake mechanism.  While passing up the incline, due to the combined gentle agitation and washing accomplished by the reciprocating raking mechanism, organic solids are separated from the grits and flow back in to the basin.  By this method, a cleaner, well washed and drained grit is obtained from the screened influent as end discharge from grits washing system.

DETRITOR INSTALLATION

RAKE TYPE GRITS WASHING UNIT

Substantially grits free liquid overflows from the collection tank which simplifies the downstream treatment process further .

The collection chambers are selected on the basis of overflow rates that are dependent on particle size and the temperature of the waste water.

PLAN VIEW OF GRITS COLLECTOR AND WASHING UNIT
CROSS SECTIONAL VIEW OF GRITS WASHING UNIT
